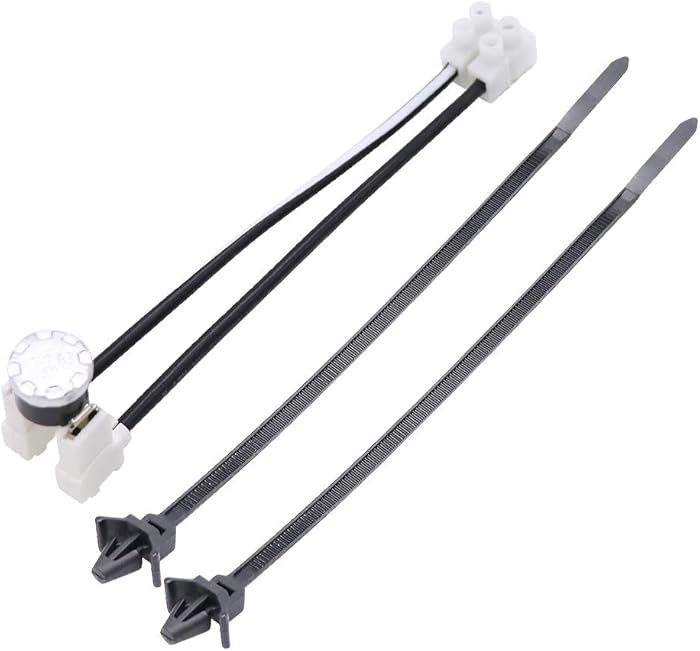

W10258275 Dishwasher Thermal Fuse Replacement Part

A thermal fuse is an emergency safety device that protects a dishwasher from circuit overload or overheating. When a dishwasher overheats, the thermal fuse trips and cuts off power to the dishwasher control board. If this happens, your machine will automatically shut down and will not restart. Replacing the thermal fuse can get your dishwasher running again. This PartsBroz new lid switch replacement is affordable, easy to install, and designed as a direct fit for most name brand dishwashers.

Installation Tips

Useful tools for this repair include a Torx 15 driver, small Phillips-head screwdriver, small razor blade, wire cutters, and two zip ties (included). Always remember to unplug the dishwasher and turn off its water supply prior to beginning any repairs. If you can’t access the wall plug, turn off the circuit breaker instead.

Our thermal fuse replacement kit offers versatility. It’s a functional equivalent for part numbers W10258275, 1549751, 661663, AP4423189, W10136048, W10258275, W10258275VP, W10344801, and PS2360984.

It works with most top name brands and many of their models. These include:

• Whirlpool
• KitchenAid
• Kenmore
• Roper
• Inglis
• Estate
• Crosley
• Maytag

Please reach out to us if you have a question about compatibility. Comment below in the customer questions and answer section, or send us a message on the PartsBroz storefront. We’re happy to help ensure you select the right part number for your dishwasher.

This is a replacement thermal fuse for your dishwasher. The thermal fuse is sometimes known as the

thermal cutoff.The thermal fuse shuts off the dishwasher if the dishwasher shorts out or overheats.If your

 dishwasher is cutting out during the cycle,or will not start,you may have an issue with your thermal fuse;

[Compatible Models]:

Kenmore:66577972K702,66577972K703,66577972K704,66577973K700,66577973K701,

                 66577973K702,66577979K700,66577979K701 etc;

Whirlpool:7GU3200XTSS0,7GU3200XTSS1,7GU3200XTVY0,7GU3200XTVY2,7GU3200XTVY4,

                  7GU3600XTSY0,7GU3600XTSY1 etc;

Amana:ADB1400AWD0,ADB1400AWQ0,ADB1400AWS0, ADB1400AWW0,ADB1600AWB0,

             ADB1600AWB1,ADB1600AWB2,ADB1600AWB3 etc;

Dishwasher replacement including 661566 thermostat and W10258275 bimetal thermal fuse with instructions

Model No. 661566 thermostat:
Replace part No.: 661566, WP661566, 3371618, W10339474, AP6010246, PS11743423

Function:
Keeps the dryer from overheating, once the dryer temperature reaches a certain point, 661566 thermostat will shut down power to the heating element, it works as a safety mechanism.

When should replace your old 661566 thermostat?
1. Not drying dishes properly
2. Will Not Start
3. Not cleaning dishes properly
4. Door latch failure

Model No. W10258275 dishwasher bimetal thermal fuse:
Replace part No.: 1549751, 661663, AP4423189, W10136048, W10258275, W10258275VP, W10344801, PS2360984

Function:
Protect the dishwasher circuit from overload, once the temperature gets to high, it will quickly shut off the electrical current to the heating unit in the appliance.

When should replace your old W10258275 bimetal fuse?
1. Will Not Start.
2. Not draining.

Package includes:
1 x 661566 Thermostat
1 x W10258275 Bimetal thermal fuse

Please note:
These dryer replacements are not original aftermarket parts; The mention of any related models and brads above is only for purposes of demonstrating compatibility.
Please refer to your old part No. before order to ensure purchase correct model.

A thermal fuse is an emergency safety device that protects the dishwasher from overloading or overheating. When it activates, your machine shuts down and won’t restart. Replacing the thermal fuse and wire harness will get your dishwasher running again. It’s a simple repair when you use this PartsBroz fuse kit. The part is a high-quality exact equivalent to part 8193762.

Installation Tips

Unplug your dishwasher and turn off its water supply before starting. Helpful tools include a Torx 15 driver, a small flat head screwdriver, and wire strippers. When cutting off the old fuse, be sure not to cut more than one inch of wire off.

Compatible brands and models include but are not limited to:

Estate: TUD8700RQ0

Kenmore/Sears: 66516512201, 66516532200, 66517533202, 66516503201, 66516532202, 66516539200, 66516574201, 66517503200, 66517509200, 66517509201, 66517512202, 66517514202, 66517519201, 66517519202, 66517532200, 66517532201, 66517534200, 66517609301, 6.65111E+11, 66514353300, 66514353301, 66515872000, 66515874000, 66515879000, 66515882000, 66515884000, 66515887000

KitchenAid: KUDS01DLBL1, KUDI01TJBL1, KUDP01DLBS1, KUDI01ILBS2, KUDI01ILWH0, KUDP01FLBL5, KUDP01ILBL1, KUDS01ILBS3, KUDK01ILBS3, KUDM01FKBL0, KUDM01FKSS1, KUDS01FLWH6, KUDI01DLBL1, KUDI01DLBL6, KUDI01ILBS3, KUDI01ILBT2, KUDM01TJBT1, KUDP01DLBL1, KUDP01DLBS3, KUDP01FLBL3

Whirlpool: GU3200XTPS3, DU1050XTPQ3, DU1050XTPT1, DU1055XTPT0, DU1145XTPQ3, DUL300XTLQ3, GU2400XTPS0, DU1100XTPB3, DU1100XTPS1, DU1100XTPT1, DU1145XTPQ0, DUL300XTKQ0, DUL300XTLB1, GU1500XTLT0, GU2500XTPQ0, GU2500XTPT6, DU1050XTPB0, DU1050XTPB3, DU1100XTPS3, DU1145XTPS1, DU1148XTPQ1, GU1100XTLB0, GU3200XTPB0, DU1050XTPT3

Replaces Several Part Numbers: 8193762, AP3178588, 8193762VP, 8269213, 959376, AH774514, EA774514, ER8193762, and PS774514.

Please reach out to us if you have a question about compatibility.

“Specifications:
Material: Plastic + Metal
Color: White and Black
Part Number:w10402110
Size: 5.7x22cm/2.24X8.7inch(WxL)
Weight: 46 g

Package include:
1 x W10402110 Dishwasher Fuse Assembly(with harness wires and connectors)”
