The Best Cabinet Cooling

Overview

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. This kit includes two single fan units, one exhaust and one intake. plus a thermal controller. Each fan uses a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

Thermal Controller

The thermal controller features an on-board processor that provides a digital read-out of the cabinet’s temperatures. Programming includes an easy-to-use thermostat mode, fan speed control, and a SMART mode that automatically adjusts the fan’s speed to react to surrounding temperatures. Includes a back-lit LCD display with back up memory to recover your settings during power failures.

Connecting Additional Units

For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

Applications

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller,4 AC Outlets and 5 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations.Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

4 AC Power Sockets
You can plug audio equipment, game console and anything you have in your Cabinet in this power outlet.

Speed Controller
The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments.

Applications
This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Specifications
Materials: Plastic(ABS & PC)
AC Rated Input: 100-240V , 50/60Hz
AC Rated Output: AC 100-240V , 50/60Hz, 1250W
Size: 13.7 x 6.7 x 1.18 in / 348 x 170 x 30mm
Power Cord Length: 5ft / 1.5m
Weight: 14 oz / 400g

Overview

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

Thermal Controller

The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water resistant.

Connecting Additional Units

For cabinets that requires more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

Applications

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Overview

A quiet cooling fan system designed to be placed on top of AV components such as receivers, amplifiers, and DVRs. Maintaining an optimal temperature for components prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller on the front of the system features a smart thermostat with speed control and status alerts. The steel enclosure houses three dual-ball bearing blowers that pulls heat out of the component and exhausts out the rear. Its slim low-profile design enables the unit to fit in tight spaces. On the backside are ports to connect and control additional fans. Includes corded power adapter to plug the fan system through an outlet.

Intelligent Programming

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit are ports that can control up to six individual AC Infinity AIRPLATE Cabinet fans and MULTIFAN Component fans.

Design and Construction

Each system features dual-ball bearing blowers rated at 67,000 hours and are certified by CE and RoHS. Blowers contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 pounds to be stacked on top.

OVERVIEW: This cooling system is designed add cooling to your AV cabinet, home theater cabinet or computer desk. It has 2 high-quality, low-noise 80mm fans, with long-lasting and quiet fluid dynamic bearings. The fans are built into a single dual-fan housing.

The system includes an adjustable thermostat, which is mounted on the inside of your cabinet. This rugged mechanical thermostat requires no maintenance or batteries to operate. It has adhesive Velcro pads on the back to make mounting and thermostat access easy.

Includes a 5 speed power transformer, which plugs into any AC outlet.

The standard system comes set up so that hot air enters the front of the fan unit (as shown with mounting plate and grills), and exits out the back. Regular Buyers: If you need to have the air coming out the front, just let us know and we will ship it that way. Prime Buyers: Since systems are shipped directly from Amazon’s warehouses, we can’t change the fan orientation on request. However, you can also easily change the fan orientation later, using the simple instructions in your installation manual.

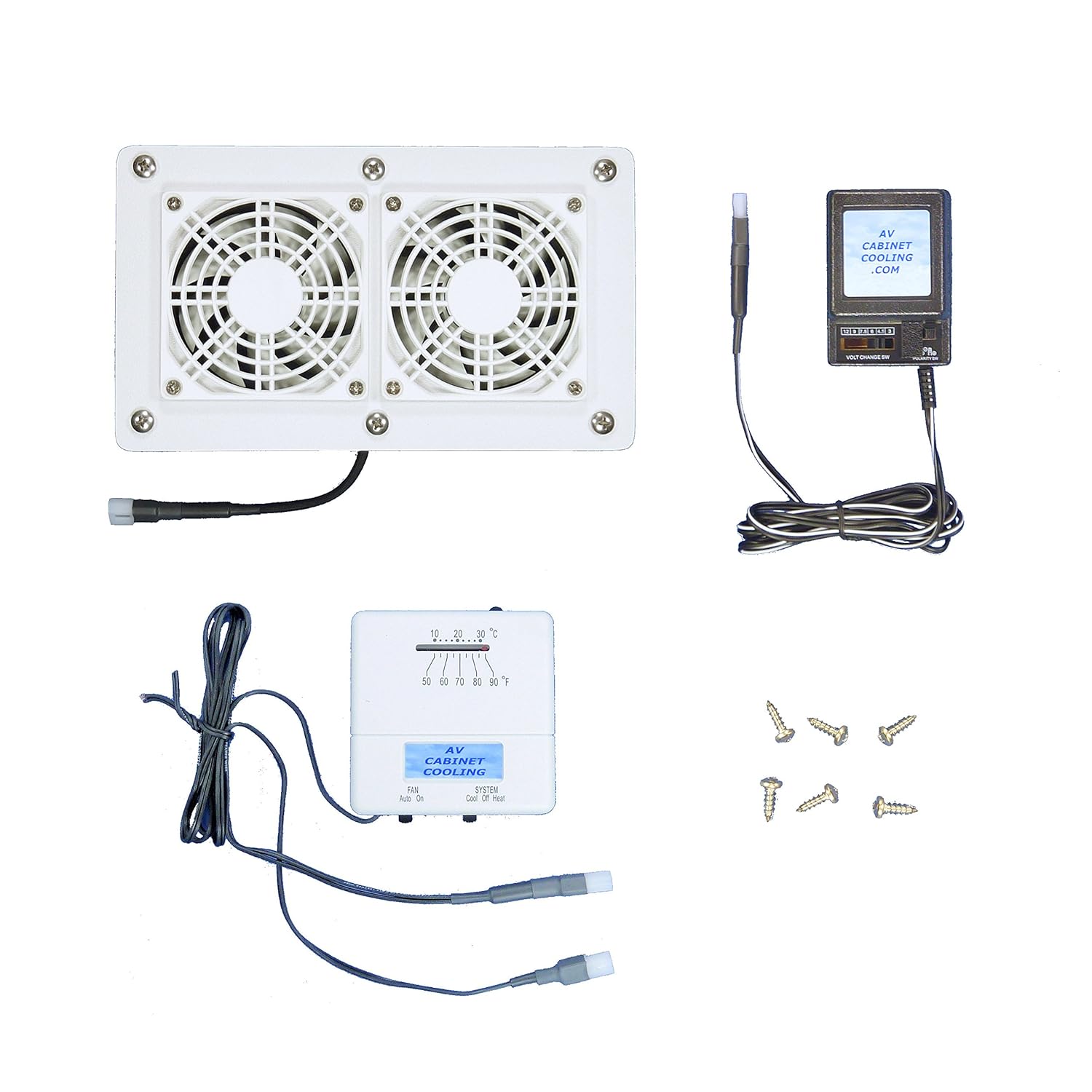

THE COOLING SYSTEM INCLUDES: 1 x dual-80mm fan units, 1 x adjustable thermostat, 1 x multi-speed power transformer and mounting hardware.

SETUP: The system comes completely assembled, with all components installed, wired and ready to go! Installation is easy, using the supplied instructions and mounting template.

GUARANTEE: Your satisfaction is guaranteed. You can return the system for any reason within 30 days — just contact me (through Amazon) and I will send you a prepaid shipping label. Since starting in 2005, AV Cabinet Cooling has sold over 10,000 cooling systems, and we are dedicated to great customer service.

WARRANTY: Your purchase is also covered by a 12 month parts & labor warranty.

Overview

A quiet cooling fan system designed to be placed on top of AV components such as receivers, amplifiers, and DVRs. Maintaining an optimal temperature for components prevents overheating, ensures constant performance, and extends their lifespan. The controller on the front of the cooling system features a smart thermostat trigger and fan speed control. The steel enclosure houses three dual-ball bearing fans that pulls heat out of the component and exhausts upwards. Its low-profile design enables the unit to fit in tight spaces. Includes corded power adapter to plug the fan system through an outlet.

Intelligent Programming

There are three programming settings available which includes two temperature trigger modes. The fans can also be set to run continuously or be turned off. Four fan speeds are available for each active mode and will determine the speed at which the fans run when they are triggered. This ensures optimal airflow and noise levels for your application.

Design and Construction

Each system features dual-ball bearing fans rated at 67,000 hours and are certified by CE and RoHS. Fans contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 pounds to be stacked on top.

Raising Electronics Rack Mount Fan – Solid, Versatile and Premium Quality, protect rack mount equipment from overheating, performance issues, and shortened lifespans. This 2-fans unit is designed for applications that requires high volume cooling inside server or network cabinets. It provides a maximum airflow in your mission critical server systems. The air flows from the unit bottom to top. Operates at a quiet noise level(from 42-48dBA) making it perfect for the server room or within your office space.

Features:
1.2 fans in one. Air flow up to 150 CFM.
2.Quiet functioning: 42-48dBA.
3.Package includes mounting screws.
4.4.75”x4.75”x1.75” Mounting holes 4” away from each other.

Specifications:
Color: Advanced Black
Self Dimension: W4.75″XD4.75″XH1.75″
Input Plug Type: NEMA5-15P
Input voltage: 110V 50/60HZ

Shipping Dimension:
3LB 21x9x3
