Top 10 Ge Dishwasher Side Panel

Installation Directions
1.) Turn off power to your dishwasher in breaker box
(ABSOLUTELY CRITICAL TO AVOID SHOCK)
2.) Rotate lower access panel fasteners and remove them
3.) Remove access panel/sound dampening pad. Determine if the water supply
or power lines have enough slack to move the dishwasher. If not, you will need to
turn off water supply valve, disconnect water supply line from inlet valve & release
power line from junction box
4.) Open dishwasher door, remove the screws from the existing brackets (if present)
5.) You will next be moving the dishwasher. To do so, you may need to lower the
dishwasher by adjusting the leveling legs
6.) Carefully pull dishwasher a few inches away from the front of the cabinet
7.) Use pliers to pull up tabs in back of the bracket (if present). Pull out old brackets

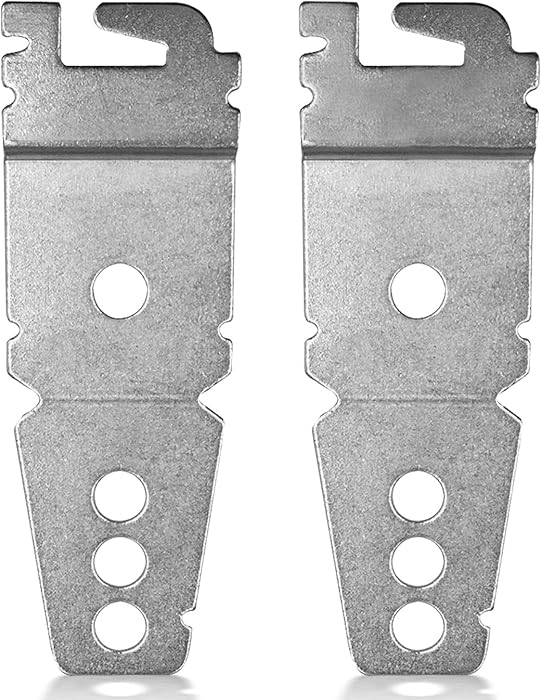

8.) Insert new brackets. Use pliers to adjust the back tab to lock the brackets in place
9.) Slide the dishwasher back into the cabinet (readjusting the leveling legs, if necessary).
Replace the screws in your new brackets
10.) Reverse steps 3, 2 and 1.

This is a generic product manufactured and distributed by Impresa Products
This is not a Whirlpool, Sears, Kenmore, Amana, Jenn-Air, Crosley, Maytag
Roper, Magic Chef, Estateor Inglis OEM product and Impresa Products has no affiliation
with or endorsement from these brands. Our product is not covered under any
other manufacturer’s warranty (except for Impresa Products). The Whirlpool,
Sears, Kenmore, Amana, Jenn-Air, Crosley, Maytag, Roper, Magic Chef,
brand names and logos are the registered trademarks of their owners.
Any use of the Whirlpool, Sears, Kenmore, Amana, Jenn-Air, Crosley, Maytag,
Roper, Magic Chef model or any other related
designations are made solely for purposes of description.

Replaces the following part numbers:
WP8269145, WP8269145VP.

Works for brands:
KitchenAid, Whirlpool, Kenmore, Maytag, Jenn-Air, Amana, Estate, Magic Chef, Inglis, Crosley, Roper.

Fixes problem with:
Door latch failure.
Door won’t close.

Contact Us
If you are not sure if part is correct, ask us in Customer questions & answers section or contact us by visiting the Discount Parts Direct storefront.

Business Wholesale
We are a small local company from Houston, Texas offer discount parts for retail and wholesale. If you need to purchase parts for business , please contact us for lower rates.

OEM Factory Part. WD8X228-WD8X227

Product Description

Keep your silverware shining and clean by washing them in this dishwasher basket from General Electric. With plenty of room and an easy-to-use design, this is an ideal replacement part for your kitchen appliance. This dishwasher part features simple installation and can accommodate all sorts of flatware.

From the Manufacturer

This is a Genuine Replacement Part,The Model Number and Name for The Following Item: General Electric (GENF0) WD28X10128 Dishwasher Silverware Basket

Genuine Original Equipment Manufacturer (OEM) parts! This dishrack roller and stud (part number WD35X21038) is for dishwashers. Dishrack roller and stud WD35X21038 includes the roller that lets you roll the dishrack in and out, and the stud that attaches the roller to the dishrack. Wear work gloves to protect your hands when installing this part. For Kenmore, Hotpoint, & Sears.

Product Description

This is a Genuine Replacement Part, The Model Number and Name for The Following Item: General Electric (GENF0) WD08X10032 Dishwasher Door Gasket.

From the Manufacturer

This is a Genuine Replacement Part,The Model Number and Name for The Following Item: General Electric (GENF0) WD08X10032 Dishwasher Door Gasket

TESTED, TRUSTED AND BACKED BY OUR TOP-RATED WARRANTY AND CUSTOMER SERVICE!

1) Turn off power to dishwasher in breaker box (ABSOLUTELY CRITICAL TO AVOID SHOCK), turn off water supply. 2) Pull dishwasher out from its place. 3) Remove upper screw from side of dishwasher. Align last hole of bracket on long flat part of bracket with screw hole. Reinsert & tighten removed screw / one new provided screws. 4) Push dishwasher back into place. Open door. Determine which bracket hole to use. You want to use the farthest hole forward that still attaches to cabinet. If using holes on the smaller flat part of bracket, see 5A-6A. If using back hole, see 5B-9B. 5A) If using front hole, leave bracket as is. If using 2nd hole, use 1 pair of pliers to hold bracket at the 2nd hole & 1 pair of pliers to break off front tab. Repeat. Push dishwasher into place. 6A) Pre-drill screw holes to avoid splitting wood. Screw brackets into place using provided screws. DONE! 5B) If you cannot use either of front two holes on bracket, you will need to drill a hole in tub. Use sharpie to mark through back bracket hole on dishwasher. Repeat. Remove both brackets. 6B) Using 2 sets of pliers, break off both brackets before bend. 7B) Drill 3/8 in hole through each side of plastic tub. Hold plastic tightly right below mark & use a drill slowly to ensure you have a clean hole without damaging tub. Clean up both holes with razor blade until smooth. 8B) Put brackets back on, put dishwasher back into place. Pre-drill small holes into cabinet wood, then screw in included screws on each side. 9B) Insert plastic plugs in each hole. Run dishwasher & check for leaks. If leaks are present, you may need to add rubber cement to plastic plugs to create a seal.

This is a generic product manufactured & dist. by Impresa Products (TM). This is not an OEM product. Any use of brand names, models, etc. is made solely to describe & illustrate compatibility.

From the Manufacturer

Bracket and Solenoid. # Works with the following models: General Electric GSC3500N00BB, General Electric GSC3500N00WW, General Electric GSC3500N10WW, General Electric GSC3500NBB, General Electric GSC3500NWW.

From the Manufacturer

General Electric WD26X10013 GE Dishwasher Pump and Motor Assembly pumps water through the wash arms to clean dishes. Used for GE and Hotpoint dishwasher models, as well as other brands.
